Optični čitalec Ricoh N7100

Easy Stand-alone Network Operation with Large Display

Large size screen with integrated on-screen keyboard and PC functions are equipped in this compact network scanner. It can be used in the office or a teller window where space is limited. The user can perform scanning, data saving and transmission without the need to operate from a computer.



• Quick scanning speed that supports plastic card
  Scanning speed is consistent at 25 pages per minute (ppm) even when scanning full A4 color, double-sided, at 300dpi. N7100 is equipped with accurate and stable feeding mechanisms that support scanning from thin paper to thick paper, and plastic card. Plastic ID card and application forms can be scanned together easily at a teller window of banks or hospitals.
• Less waiting time to achieve stress free scanning
  In order for the user not to feel any stress, the image processing after scanning is quick thanks to the enhanced CPU/memory. The time from the start of scanning to the finish including image processing (when the preview of the last scanned page appears) is 50% shorter than the previous model⁽¹⁾. For regular scanning routines, only one touch of the scan button is necessary which greatly improves the productivity.
• High security assuming to be shared by multiple users
  The N7100 achieves high security on the premise that it is shared by multiple users. Not only verification before scanning, but also encryption while processing and data deletion after scanning are performed automatically. Users can use the network scanner with peace of mind.
  • Login authentication strictly controls what people can do with the scanner.
  • Scanned data can be output as password-protected PDF files.
  • Advanced security measures guard scanned data from prying eyes.
    • Encryption
      N7100 encrypts and temporarily stores scanned data locally during processing for e-mails, faxes, printing and network storage.
    • Scanned data deletion
      After scanned data has been e-mailed, faxed, printed out or saved to a network folder N7100 automatically deletes the temporarily stored data from its internal memory. Even if an error results in the data remaining in the memory, it is then automatically erased the next time the scanner is started up.
    • Secure Initialize
      When N7100 is initialized, free regions of the internal memory can be overwritten with completely random, meaningless data. As an added security measure, a new cipher key is generated after the user information is deleted. All of this ensures that no trace of old user data can be retrieved from open memory.



Perfect Fit Customized to Your Unique Needs

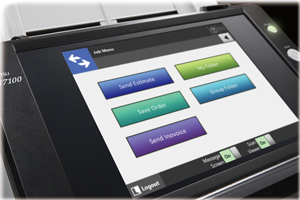

Administrators can customize the touch panel job menu and scan settings of N7100 to suit the work of a specific user or user group registered to the scanner. The user’s application can be integrated to the scanner as add-in software using the exclusive SDK (for Windows). N7100 comes with an open USB port to connect a keyboard or other USB devices⁽²⁾ (except USB memory). N7100 can be customized to be a terminal exclusively for your operation.

*To satisfy the security policy, anti-virus software can be installed as an option to safely expand the functions.

*The SDK (software development kit) allows for the development of scanner controlled workplace applications. The Network Scanner Control SDK is free to download. Support scheme is different by each sales region.



High Quality Results Perfectly Suited for OCR

The scanner driver PaperStream IP, which supports TWAIN saves the hassle in fine adjusting the document for OCR processes. It automatically converts the images into exceptionally clean images, accelerating OCR even when scanning wrinkled/soiled document or documents with a background.

Automated functions take the work out of scanning

Advanced automated functions ensure N7100 digitizes your documents with remarkable precision and efficiency. Produce beautiful scans quickly with barely the need to lift a finger.

* This function detects words marked with a highlighter and embeds them as keywords in PDF files.





Versatile range of use from SOHO to large enterprises

Connects with a variety of server types
N7100 easily satisfies the digitizing needs of small office networks which use a file server and e-mail server. It is also right at home with more complex LDAP/LDAPS authentication-based networks, integrated with Microsoft Exchange Server, SharePoint and other application hubs.

Set up and manage multiple N7100 scanners at one time
N7100 offers administration functions that allow you to individually or collectively setup and manage a vast network of N7100 units with ease from a single console.

• Network Scanner Admin Tool
  The Admin Tool function allows you to adjust running environment settings one scanner at a time.
• Scanner Central Admin Console/Scanner Central Admin Server
  Collectively monitor and manage scanner usage, settings and much more for multiple N7100 units through the Scanner Central Admin Server function.





1. Time to scan 10 A4 sheets in color. Time from pressing the “scan” button until the completion of image processing (preview image of the last page appears) is 50% shorter compared to the predecessor N1800 (52 seconds reduced to 24 seconds)
   Output resolution: 200dpi, Output file format: Multi-TIFF
   Image Processing: Auto color detection, Automatic page size detection, Rotation, Blank page skip, Multifeed detection
2. Only standard keyboard with layout of 109(Japanese) and 102(English) are supported. When using with other USB devices such as IC card reader, development of Add-in application using Network Scanner Control SDK (free download) is necessary.

Description		N7100
Scanner type		ADF (Automatic Document Feeder), Duplex scanning
Scanning modes		Color, grayscale, monochrome, automatic (color / grayscale / monochrome detection)
Image sensor type		Color CIS x 2 (front x 1, back x 1)
Light source		3 Color LED (Red / Green / Blue)
Multi-feed detection		Supported (Standard) ultrasonic multi-feed defection sensor
Document size (1)	Normal mode without Carrier Sheet	A4, A5, A6, B5, B6, Business card, Post card, Letter, Legal and Custom sizes (Max: 216 x 355.6 mm (8.5 x 14.17 in.), Min: 50.8 x 50.8 mm (2 x2 in.)) Automatically recognizes document size
	Normal mode with Carrier Sheet	Use of a Carrier Sheet permits the scanning of A3, B4, 11 x 17 in., and photographs as well as the documents sizes that are listed above
	Long paper scanning(Maximum)	3,048 mm (120 in.) (2)
Paper weight (Thickness)		40 to 209 g/㎡ , or 11 to 56 lb (paper thickness 0.049 to 0.257 mm) A8 size: 127 to 209 g/㎡ , 34 to 56 lb (paper thickness 0.157 to 0.257 mm) Cards* can be used. (thickness 0.76 mm or less) Embossed cards*: useable * Landscape only
Scanning speed (A4 Portrait)(3)	Color	Simplex: 25 ppm (200, 300 dpi) Duplex: 50 ipm (200, 300 dpi)
	Grayscale
	Monochrome
Paper chute capacity		50 sheets (Letter/A4, 80 g/㎡ or 20 lb) (Active loadable ADF)
Expected Daily Volume		4,000 sheets
Optical resolution		600 dpi
Output resolution(4)	Color (24-bit)	150 / 200 / 300 / 600 dpi
	Grayscale (8-bit)
	Monochrome (1-bit)
Output methods(5)		Save image data to network folder/FTP server Send image data by E-mail Print (Sends image data to printer server) Send image data by FAX (Sends image data to FAX server in E-mail format) Save image data to SharePoint portal server
Output file formats		PDF(Searchable / Password-protected / compressed / Marker Index processed), JPEG, TIFF(single / multi-page), page output in reverse order
Authentication (5)		User authentication: Active Directory or Open LDAP(for Solaris or Linux), Standalone authentication (6) Folder authentication Active Directory or Open LDAP(for Solaris or Linux)
Network interface		10BASE-T, 100BASE-TX, 1000 BASE-T
Network protocols		TCP/IP(IPv4 / IPv6 (7) ), DNS, DHCP, SMTP, SMB, LDAP, NTP, FTP, HTTP, SNMP
Scanner Central Admin Server		Windows® 2003, 2008, 2008 R2, 2012, 2012 R2, 2016, 2019 Server required
Network Server Authentication		Windows® 2003, 2003 R2, 2008, 2008 R2, 2012, 2012 R2, 2016, 2019 Server or open LDAP
Power requirements		AC 100 to 240 V ±10%
Power consumption		Operating mode: 38 W or less Sleep mode: 2.0 W or less Auto Standby (off) mode: 1.0 W or less
Operating environment		Temperature: 5 to 35°C (41 to 95°F) Relative humidity: 20 to 80% (Non-condensing)
Dimensions:Width X Depth X Height (8)		300 x 232 x 172 mm (11.8 x 9.1 x 6.8 in.)
Weight		6 kg or less (28.7 lb)
Environmental compatibility		ENERGY STAR® / RoHS
Display	LCD	8.4 inch XGA (1,024 x 768 pixels) TFT Color monitor
	Touch panel	Analog resistive touch panel
Keyboard		Software keyboard
